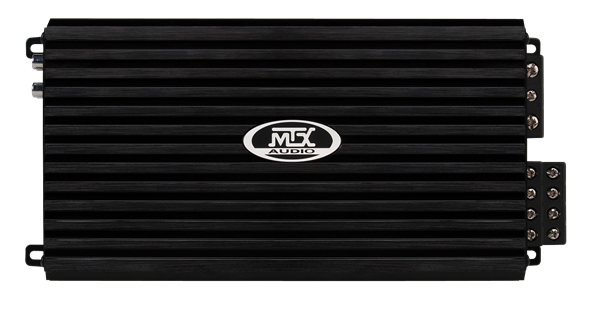

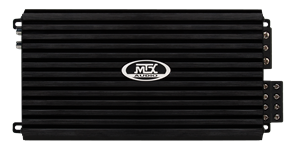

MTX Audio TD75.4 Amplifier
TD Series 400W 4-channel amplifier.
$299.95*
FREE!**
1 Year
New
Please wait...
|
|
|
The TD series amplifiers are designed to bring big power in a small footprint. Available in two size mono blocks and a single 4 channel, TD series amplifiers offer excellent system flexibility at a great price. Featuring surface mount design that resists vibration and an extruded aluminum heat sink that dissipates heat effectively, these amps have everything you need to make your system bang.
Features:
-
Small Footprint
-
Extruded Aluminum Heat Sink
-
Surface Mount PCB Design
-

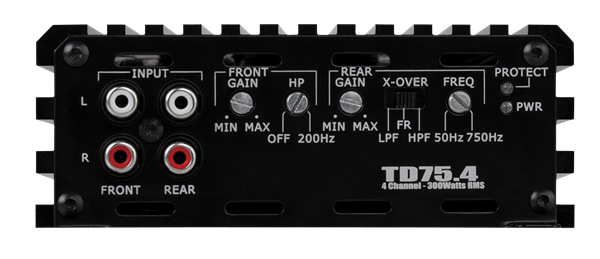

Variable Crossovers
Specifications:
|
Part Number:
|
TD75.4
|
|
4Ω RMS Power Output:
|
75W x 4 Channels
|
|
Signal to Noise Ratio:
|
80dB
|
|
2Ω RMS Power Output:
|
100W x 4 Channels
|
|
Frequency Response:
|
15Hz to 25kHz
|
|
Crossover:
|
Variable LPF 50Hz to 750Hz (Rear), Variable HPF 10Hz-200Hz (Front), Variable HPF 50Hz-750Hz (Rear), 12dB/Oct
|
|
Topology:
|
Class A/B
|
|
Maximum Input Signal:
|
5V
|
|
Maximum Sensitivity:
|
200mV
|
|
Width:
|
5 1/2" (13.97 cm)
|
|
Length:
|
10" (25.4 cm)
|
|
Height:
|
2 1/8" (5.4 cm)
|
|
Recommended StreetWires Amp Kit:
|
ZN3K-04 or ZN3KI-04
|
Items Shipped:
|
1
|
MTX TD75.4 4-Channel Amplifier
|
|
1
|
Owners Manual
|
