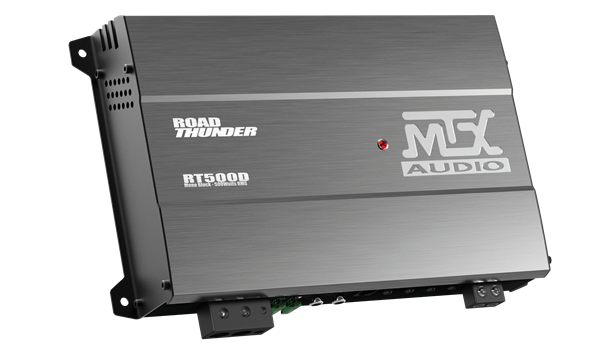

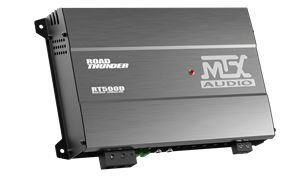

RT500D Mono Block Road Thunder Amplifier
500W RMS Class D Amplifier
$349.95*
FREE!**
1 Year
New
Please wait...
|
|
|
The all new Road Thunder series amplifiers are the
culmination of years of experience in design to deliver the ultimate in
performance and value. Outwardly the Road Thunder series amplifiers utilize
clean lines with a brushed aluminum finish that complements any installation in
any vehicle. Internally these amplifiers are designed to outperform all other
amplifiers in their class.
The class D mono blocks utilize patented MTX technologies like Adaptive Class
D topology and Smart Engage circuitry to ensure to deliver excellent sound
quality in an easy to install package. Additionally, these models feature a dual
layer printed circuit board that has twice the amount of copper as similarly
priced amplifiers that use a single sided board. This results in improved THD+N
as well as signal to noise ratio. The feature set for these models include an
adjustable low pass crossover with a 24dB/octave slope, an adjustable bass boost
up to 12dB, a subsonic filter for improved subwoofer performance when using a
vented enclosure, and each model includes an external bass control. All of these
features are loaded into MTX’s smallest amplifiers yet.
The full range amplifiers deliver excellent performance as well. These class
A/B models have excellent sound quality reproduction in a small chassis size as
well. These models are both full range and include a selectable low pass, high
pass, or full range mode which accommodates any installation and listening
style. Both models feature both a low pass and high pass crossover as well as
speaker level inputs for easy install.
Features:
-
MONO BLOCK FEATURES
-
Class D topology provides greater efficiency than A/B models for extended play.
-
Dual Sides Fiberglass PCB contains twice as much copper as single sided PCB providing twice the current capacity.
-
24dB/Oct LPF slope prevents frequencies outside the crossover point for improved sonic accuracy.
-
Balanced RCA input offers better noise rejection and prevents introduction of ground loops through the RCA connection.
-
External Bass Control included for greater sound customization.
-
MULTI CHANNEL FEATURES
-
Selectable Full Range, Low Pass, or High Pass setting allows for use in diverse installation scenarios.
-
Speaker level and RCA inputs for install flexibility.
Specifications:
|
Part Number:
|
RT500D
|
|
Topology:
|
Class D
|
|
4Ω RMS Power Output:
|
250W x 1 Channel
|
|
Signal-to-noise Ratio (1 Watt):
|
75dB
|
|
2Ω RMS Power Output:
|
500W x 1 Channel
|
|
THD+N (Distortion) (1 Watt):
|
< 1%
|
|
Frequency Response (-3dB):
|
20Hz to 200Hz
|
|
Crossover:
|
Variable Low @ 40Hz to 200Hz, 24dB/Oct
|
|
Bass Boost:
|
+12dB @ 40Hz
|
|
Subsonic:
|
20Hz to 50Hz, 12dB/Oct, Variable
|
|
Maximum Sensitivity:
|
250mV
|
|
Maximum Input Signal:
|
4V
|
|
Height:
|
7 1/16" (17.94 cm)
|
|
Depth:
|
2 1/8" (5.4 cm)
|
|
Width:
|
11 3/8" (28.89 cm)
|
|
Recommended StreetWires Amp Kit:
|
ZN5K-04 or ZN3K-04
|
Downloads:
Items Shipped:
|
1
|
RT500D 500W RoadThunder Amplifier
|
|
1
|
Owners Manual
|
|
4
|
Mounting Screws
|
|
1
|
Allen Wrench
|
|
1
|
External Bass Control
|
