DCM TFE630LCR Time Frame Evolution In Ceiling Loudspeaker

Single 6.5" 2-Way In Ceiling Speaker System
$299.95
FREE!**
10 Year
New
Model:
  • TFE630LCR

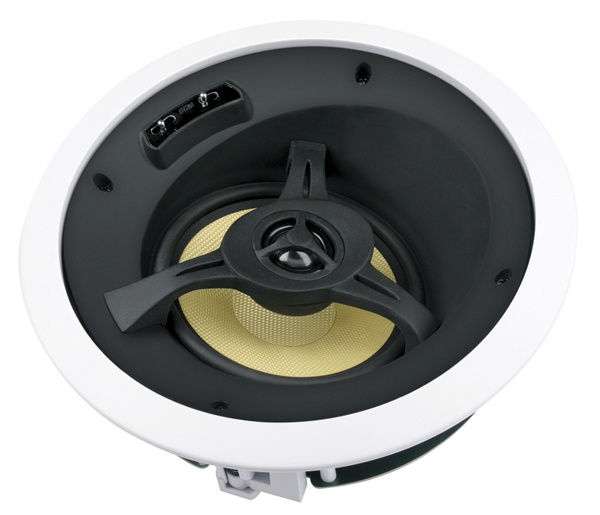

TFE630LCR Angle

Description:

The TFE630LCR is an in-ceiling speaker that is real world tuned for superior sound quality. With all the same design principles and features as the TFE830LCR 8" model, the TFE630LCR is a 6.5" woofer for when a small but powerful speaker is needed. It presents the same brilliant performance as a left, center, or right channel speaker in either a multi-channel or 2-channel installation. The TFE630LCR has improved imaging from any mounting position with a 15º angled baffle, pivoting bridge mounted tweeter, room boundary compensation, and three positions of tweeter level control. The angled baffle and pivoting tweeter help adjust the dispersion to better suit the TFE630LCR's placement in response to the listener's position. The Room Boundary EQ eliminates unwanted boosts in low frequencies, known as a corner loading effect, when mounting within two feet of a corner. The PTC protected tweeter can also be adjusted to -2, 0, or +2dB to further the imaging potential. The flexibility these engineering feats provide makes the TFE630LCR a premier choice when value, space, and sound quality are all concerns.

As a part of DCM's highly acclaimed TimeFrame Evolution series, TFE630LCRs offer lifelike performance and sonic accuracy normally reserved for much higher priced speakers. They feature DCM's own One Voice technology, meaning they are family tuned to all models in the TimeFrame Evolution and TimePiece series. With each model featuring same engineering traits and voicing, combining in-ceiling and cabinet speakers into a fluid multi-channel system is finally possible without sacrificing sound quality.

Features:

  • 15 Degree Angled Baffle for Improved Imaging from Any Mounting Location
  • Pivoting Bridge Mounted Tweeter
  • Room Boundary Compensation
  • Three Position Tweeter Level Control

Specifications:

Part Number: TFE630LCR
Woofer: Single 6.5" Kevlar
Tweeter: 30 mm Teteron Dome
RMS Power (Watts): 100
Peak Music Power (Watts): 200
Frequency Response +/- 3dB: 45Hz - 20kHz
Sensitivity (2.83V/1M): 87dB
Impedance : 8Ω
Mounting Depth: 5 " (12.7 cm)
Cut Out Diameter: 9.5" (24.13 cm)

Items Shipped:

Qty Item
1 One Pair TFE630LCR In Ceiling Speakers
1 Owners Manual
